Fathouse Fabrication
Product Image

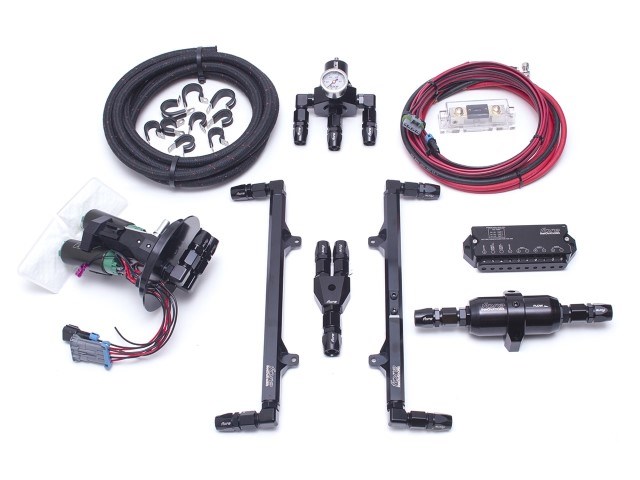

Fore Innovations 11-17 Mustang GT & GT350 Triple Pump LT4 System



Coyote Fore Triple Fuel Pump System 1800+ rwhp capable return fuel system made with top shelf components. The feed line is split by our y-block, fed into the back of the fuel rails, then the front of each rail is connected to our F2i fuel pressure regulator.

Coyote Fore Triple Fuel Pump System INCLUDES

  • S197C / S550 Fuel Pump Module (triple pump)
  • F2i Fuel Pressure Regulator
  • 2011+ Mustang GT Billet Fuel Rails
  • 2-1 compact billet Y-block
  • 88mm Inline Fuel Filter
  • FCV Checkvalve
  • All fittings, hose, and hardware necessary to complete typical fuel line plumbing

-30' of fuel line of your choice -Qty 14, compression style billet hose ends -Qty 8, straight AN to o-ring fittings -Qty 2, 1.25" fuel rail extensions -Qty 6, billet low profile 90º AN to o-ring fittings -Qty 2, billet low profile 180º fittings -Qty 10, hose straps with stainless mounting screws -Qty 2, 1/8 NPT plugs


2011+ Mustang GT with OE, Boss 302, or FRPP intake, Whipple, Kenne Bell, Vortech, Procharger superchargers or any turbo system.

You can purchase Injector Dynamics Fuel Injectors HERE

liquid-unknown-field [id]
  • Weight: 25 lbs
  • Dimensions: 12L x 12W x 12H in
