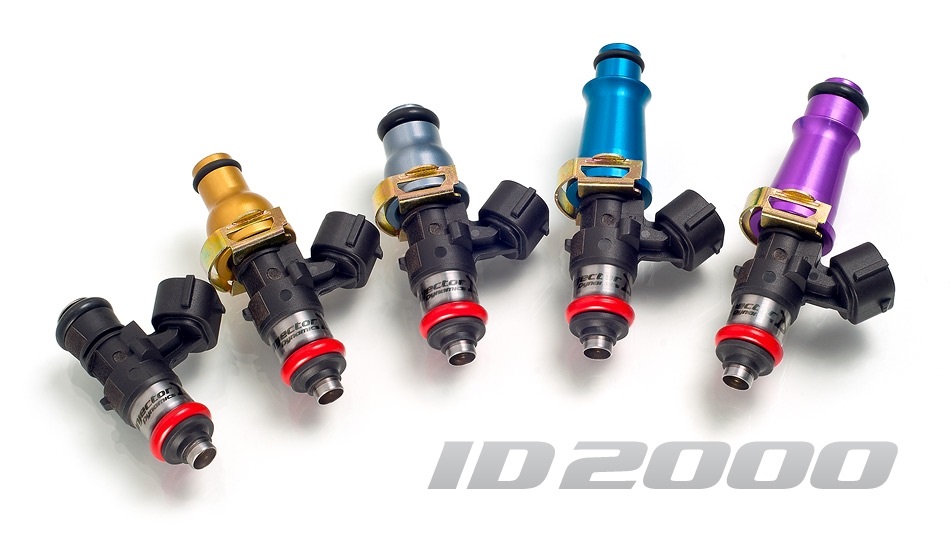

ID2000 Fuel Injectors
The ID2000 has set the standard for linearity and control in a large injector. Sold as a set of 8 Injectors
The ID2000 has set the standard for linearity and control in a large injector. Flowing in excess of 2000cc/min at 3 bar, the ID2000 will also provide a smooth stoichiometric idle on E85, and it will do all this while maintaining strict linearity up to 95% duty cycle at 9000rpm.
With a pressure capability of 9 bar this injector can flow as much as 3700cc/min with excellent low pulsewidth linearity, and has the broadest operating range of any injector on the market.
Nominal Flow Rate – 2225cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F) Maximum Differential Fuel Pressure – 9.0 Bar (130.5 psi) Fuel Compatibility – Compatible with Methanol/Ethanol/All Known Hydrocarbon Fuels. Incompatible with MTBE/Nitro Methane/Nitro Propane. Electrical Connector – Densoliquid-unknown-field [id]
- Weight: 3 lbs
- Dimensions: 6L x 4W x 2H in
